ELP-Series

Complete Network Video Recorder Solution

Deprecated

exacqVision ELP-Series

Features
IP Features Matrix
Hybrid Features Matrix
Photos
IP Part Numbers
Hybrid Part Numbers
Resources

Enjoy rich video management system features with hardware and vms software optimized for high reliability operation and minimal setup time. Minimize installation time and risk with a complete VMS solution.

Continuously record up to 200Mbps of video, audio and data
Available with 8 or 16 analog inputs
Includes 4 IP camera licenses, expandable to 24 per video server
Use the configuration calculator to find the perfect exacqVision server for your application

exacqVision ELP Series up to 40 IP Cameras

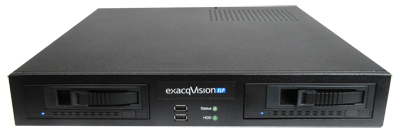

exacqVision ELP-Series IP network video recorder

Store up to 12 TB storage per server using continuous duty, enterprise-class hard drives
Linux operating system pre-installed on a solid state drive
Monitor hardware status with the free exacqVision client or e-mail notification

Add unlimited servers for greater capacity or dispersed geographic location
Easily expand license to record additional high definition IP cameras
Easily manage multiple NVRs from a single, unified client
Streamline the administration of many servers by upgrading to exacqVision Enterprise VMS

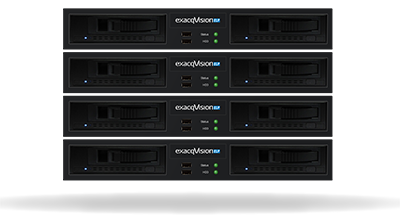

exacqVision ELP Series unlimited scalability

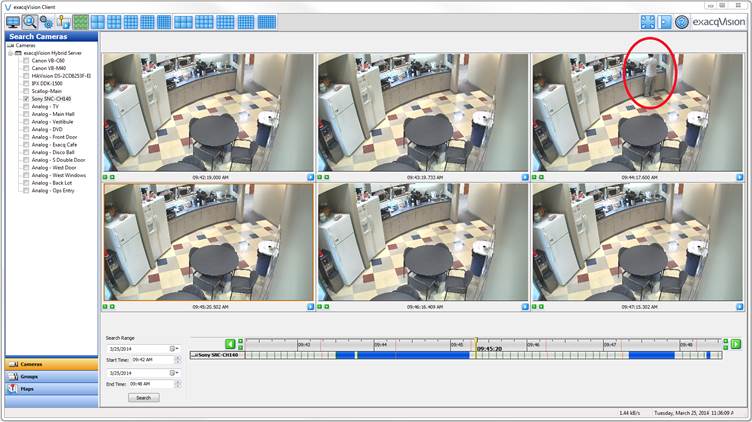

exacqVision pre-loaded vms software allows for easy search

View video from SH-ipcams
Conduct investigations on recorded video, audio and data with the exacqVision Professional thumbnail and SpeedSearch tools
Easily add camera licenses and change out cameras at any time

Immediately view video by connecting up to two PC monitors
View video and manage servers on multiple Windows/Linux/MAC PCs with free client software
View live and recorded video on any browser
View live and recorded video on iOS, Android or Windows Phone 8 mobile devices with free application

Constantly increase VMS features with regular software updates
3 years of unlimited software updates included
3 years of system warranty
Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States

ELP, Up to 24 IP Cameras

IP 1.5U recorder with 4 IP cameras licenses (24 max). exacqVision Professional or Enterprise server, client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04 on SSD. HDMI, DVI-D, DisplayPort, VGA (2 max simultaneous), Dual GB NICs, DVD-RW. Keyboard, mouse and rackmount included.

Product Name	Storage Size
IP04-02T-ELP	2 TB
IP04-04T-ELP	4 TB
IP04-06T-ELP	6 TB
Base licenses upgraded to Enterprise by adding "-E" to the end of the part numbers. Available to Select and Elite dealers only.

Options for ELP, Up to 24 IP Cameras

(Option Name/Description)

ELPR, Up to 24 IP Cameras

IP 1.5U recorder with 4 IP cameras licenses (24 max) and removable drives. exacqVision Professional or Enterprise server, client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 18.04 on SSD. HDMI, DVI-D, DisplayPort, VGA (2 max simultaneous), Dual GB NICs, DVD-RW. Keyboard, mouse and rackmount included.

Product Name	Storage Size
IP04-02T-ELPR	2 TB
IP04-04T-ELPR	4 TB
IP04-06T-ELPR	6 TB
IP04-08T-ELPR	8 TB
IP04-12T-ELPR	12 TB
Base licenses upgraded to Enterprise by adding "-E" to the end of the part numbers. Available to Select and Elite dealers only.

Options for ELPR, Up to 24 IP Cameras

(Option Name/Description)

Option Name

Description

5000-02001

2TB spare/replacement hard drive for all Q, LC-Series UNA, G-Series PoE, and non-RAID A-Series servers.

5000-04001

4TB spare/replacement hard drive for all Q, LC-Series UNA, G-Series PoE, and non-RAID A-Series servers.

5000-06001

6TB spare/replacement hard drive for all Q, LC-Series UNA, 8 Port G-Series PoE, and non-RAID A-Series servers.

5000-50100

exacqVision desktop surveillance keypad for Windows and Linux client applications. Includes 10 character numeric entry, 16 user definable buttons, pan/tilt/zoom joystick, left/right arrow wheel. Comes with one year of warranty.

5000-50200

External USB input/output module with 8 TTL inputs, 4 TTL outputs, 1 relay output, 1 RS-485. No external power required.

5000-50400

External USB 1Gb NIC. Available for all exacqVision servers.

5000-50500

External read/write USB DVD option. Available for all exacqVision servers.

5000-64160

Internal read/write DVD option for ELPR Series servers. Replaces spare drive bay. (Not eligible for systems built with more than 1 hard drive)

5000-66001

One year, next business day, on-site hardware repair for in-warranty exacqVision recorders. Available at time of initial order only. Available for the Continental US only.

EV-TYC-FM-01

Tyco AI Channel License. Includes 1 year of Tyco AI software updates.

EVCD-01-1MB

1-year Cloud Drive subscription for 1 day of retention for a 1Mb/s continuous video stream. Equivalent to 2880 30-second clips.

EVENIP-01

ENTERPRISE IP Camera license, per camera. Includes 1 year of software updates or 3 years (5 years on Z-Series) when purchased with an exacqVision server.

EVIP-01

PROFESSIONAL IP Camera license, per camera. Includes 1 year of software updates or 3 years (5 years on Z-Series) when purchased with an exacqVision server.

EVIP-EVENIP

Upgrade one PROFESSIONAL IP camera license to ENTERPRISE.

SSA-EV-TYC-FM-01

Tyco AI software updates per channel, per year.

SSA-EVENIP-01

ENTERPRISE software updates per IP camera, per year.

SSA-EVIP-01

PROFESSIONAL software updates per IP camera, per year.

Product Name	Storage Size
0804-02T-ELP	2 TB
0804-04T-ELP	4 TB
0804-06T-ELP	6 TB
Base licenses upgraded to Enterprise by adding "-E" to the end of the part numbers. Available to Select and Elite dealers only.

Product Name	Storage Size
1604-02T-ELP	2 TB
1604-04T-ELP	4 TB
1604-06T-ELP	6 TB
Base licenses upgraded to Enterprise by adding "-E" to the end of the part numbers. Available to Select and Elite dealers only.

Product Name	Storage Size
0804-02T-ELPR	2 TB
0804-04T-ELPR	4 TB
0804-06T-ELPR	6 TB
0804-08T-ELPR	8 TB
0804-12T-ELPR	12 TB
Base licenses upgraded to Enterprise by adding "-E" to the end of the part numbers. Available to Select and Elite dealers only.

Product Name	Storage Size
1604-02T-ELPR	2 TB
1604-04T-ELPR	4 TB
1604-06T-ELPR	6 TB
1604-08T-ELPR	8 TB
1604-12T-ELPR	12 TB
Base licenses upgraded to Enterprise by adding "-E" to the end of the part numbers. Available to Select and Elite dealers only.

ELP-Series Hybrid & IP Servers

IP & Hybrid Servers

pdf

Aug 2020

exacqVision Spec Sheets

ELP-Series Hybrid & IP Servers

IP & Hybrid Servers (Spanish)

pdf

Apr 2019

Spanish

exacqVision Spec Sheets

ELP-Series Hybrid & IP Servers

ELP-Series Hybrid & IP Server

pdf

Mar 2020

exacqVision Quick Start Guides

ELP-Series Hybrid & IP Servers

ELP-Series Hybrid

docx

Jun 2020

exacqVision A&E Specifications

ELP-Series Hybrid & IP Servers

ELP-Series IPS

docx

Jun 2020

exacqVision A&E Specifications

ELP-Series Hybrid & IP Servers

exacqVision ELP-Series Server RFA/BIM

rfa

Oct 2017

exacqVision Certifications and Drawings

ELP-Series Hybrid & IP Servers

CE Declaration of Conformity ELP-Series

pdf

Jan 2019

exacqVision Certifications and Drawings

ELP-Series Hybrid & IP Servers

KSA Declaration ELP-Series

pdf

Mar 2018

exacqVision Certifications and Drawings

ELP-Series Hybrid & IP Servers

US-27621-A2-UL ELP-Series

pdf

Mar 2018

exacqVision Certifications and Drawings

ELP-Series Hybrid & IP Servers

Any storage expansion may require additional hardware
Maximum Spare Drives
	ELP	ELPR
2 TB	0	1
4 TB	0	1
6 TB	0	1
8 TB		0
12 TB		0
Legend
2 TB Hot Spare Drive (Part # 5000-02001)
4 TB Hot Spare Drive (Part # 5000-04001)
6 TB Hot Spare Drive (Part # 5000-06001)

exacqVision Video Management System (VMS) Solutions

exacqVision Video Management System (VMS) Products

exacqVision Video Management System (VMS) Partners

exacqVision Video Management System (VMS) Support

exacqVision Video Management System (VMS) Tools

exacqVision Video Management System (VMS) About Us

ELP-Series

Complete Network Video Recorder Solution

Deprecated

Complete Network Video Recording Solution

Up to 40 Cameras Per Video Server

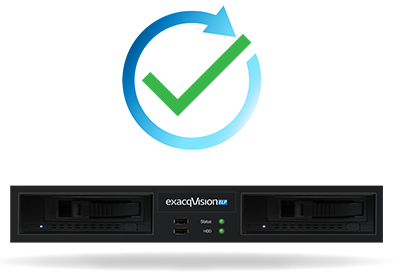

High Reliability
