exacqVision A-Series

Balanced Performance, Reliability and Capacity Video Recorders

Proven Performance

  • Continuously record up to 700 Mbps of video for high concentration of IP cameras
  • Record up to 150 IP cameras per video server
  • Stream up to 1,800 frames per second of live/recorded video to web/mobile clients
  • Stream live/recorded video up to 100 simultaneous PC clients
  • Optional quad network interfaces for fastest archiving or mass client performance

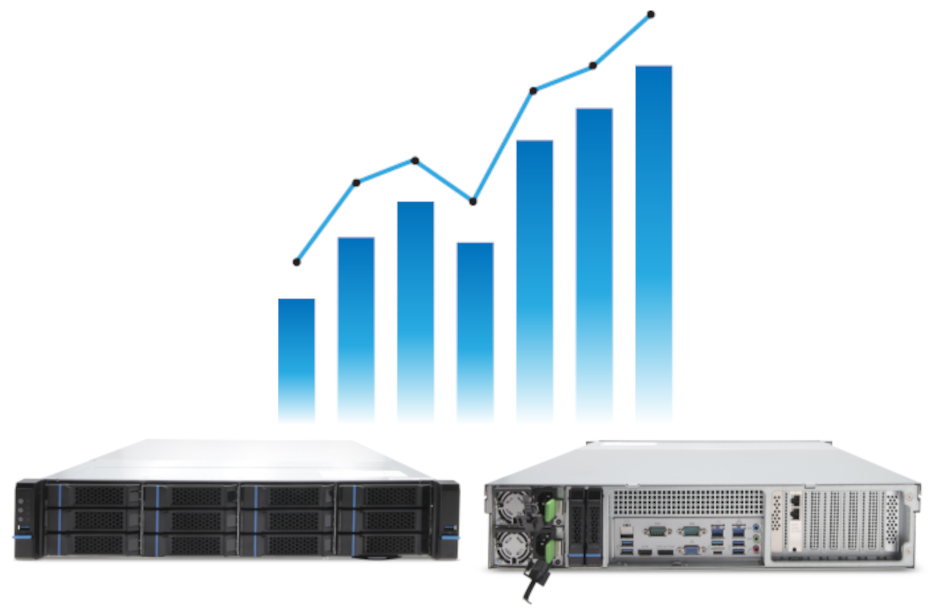

Designed Video Server Reliability

  • Minimize system boot time and failure risk with a high reliability solid-state operating system drive, redundant OS drives optional
  • Continuous duty video recording grade hard drives optimized for reduced vibration and heat
  • Uninterrupted operation and video preservation in event of video drive failure via optional RAID 6 and OS drive failure via RAID 1 on SSD OS drives
  • Protects against single power failure with optional redundant power supplies
  • Monitors hardware health in exacqVision client and with email/text notifications
exacqVision A-Series Desktop server

Designed Video Server Reliability

  • Kantech EntraPass Corporate Edition access control system pre-licensed on exacqVision Windows A-Series NVRs
  • Easily scales from controlling a few doors to thousands of doors and managing thousands of cards at multiple locations
  • Add an unlimited number of cardholders with up to 5 cards each
  • Improve response time to critical alarms and events by monitoring and controlling doors from exacqVision while viewing associated cameras
  • See more about exacqVision Kantech-Onboard Integration

Capacity for Mainstream Recording

  • Includes 8 IP camera licenses
  • Compatible with thousands of IP camera models from leading manufacturers like Illustra, Axis, Arecont and more
  • Store up to 240TB of video
  • Compatible with all exacqVision video recorders and video management software for maximum scalability

Video Management System (VMS) Software

  • Pre-configured with exacqVision Professional VMS software (standard)
    • EasyConnect – automatically finds, addresses and connects IP cameras
    • Two-way audio
    • Powerful integration with retail, financial and access control systems
    • Conduct investigations on recorded video, audio and data with thumbnail or timeline search
    • Bookmark important video for long-term retention
    • Video multi-streaming to optimize storage utilization and network traffic
  • View video anywhere (standard)
    • Unlimited Windows/Linux/Mac PC clients
    • Live and recorded video from any browser
    • Live and recorded video from most tablets and smartphones
  • Upgrade to exacqVision Enterprise VMS software (optional)
    • VideoPush to remotely control video wall clients
    • Case management to organize critical evidence
    • Active Directory / LDAP for IT administration of users
    • Easy, single-screen administration of cameras, users, storage and notifications
exacqVision A-Series CSA Certified

Hosted Certified Software Applications (CSA)

  • Install CSAs such as video analytics, access control software, and point-of-sale software on recorder
  • Save money and rack space with single video security server for retail security or other physical security applications

5-Year Warranty and Software Subscription Agreement (SSA)

  • Constantly increase VMS features with regular software updates
  • 5 years of unlimited software updates included
  • 5 years of system warranty

Cybersecurity

The exacqVision Q-Series is NDAA compliant and is designed to be resilient against cyber threats. Tyco Exacq adheres to the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program. This holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through development, including a rapid response to meet the comprehensive and evolving cybersecurity environments. Visit here for more information

exacqVision Cybersecurity
Any storage expansion may require additional hardware
Maximum Spare Drives
2U FA FAR
0 TB 4 12 12
8 TB 3
12 TB 3
16 TB 2
24 TB 2
36 TB 1
48 TB 0 6 6
64 TB 4 4
72 TB 0 6 6
80 TB 4 4
96 TB 4 4
128 TB 4 4
144 TB 0 0
160 TB 4 4
192 TB 0 0
240 TB 0 0
Legend
8TB Spare Drive -- JBOD
Part: HDD-08T-JBOD
8TB Spare Drive -- RAID
Part: HDD-08T-RAID (Unreleased)
10TB Spare Drive -- RAID
Part: HDD-10T-RAID (Unreleased)
12TB Spare Drive -- JBOD
Part: HDD-12T-JBOD
12TB Spare Drive -- RAID
Part: HDD-12T-RAID
16TB Spare Drive -- RAID
Part: HDD-16T-RAID
18TB Spare Drive -- JBOD
Part: HDD-18T-JBOD (Unreleased)
20TB Spare Drive -- RAID
Part: HDD-20T-RAID
