Tag Archives: StarDot
Report from ISC West 2011
ISC West 2011 just wrapped up last week. This years’ show was well attended, and our booth was busy the entire time. We introduced a number of new products and features at this show, including:
exacqVision Start VMS Software
Combining the ease of use of exacqVision VMS software with the essential features necessary for low-cost video surveillance, exacqVision Start VMS software is ideal for stand-alone installations of 30 cameras or less. The complete supported list of IP cameras can be used with an easy auto-scan to detect and configure. Live views, saved views, exacqRecall instant playback, video search, POS/ATM search, configuration, all included. Windows, Linux or Mac.
In addition to the exacqVision Start client, the web viewer is included, as are the exacq Mobile iPhone, iPad and Android apps. exacqVision Start is available on the entire EL-Series of embedded Linux appliance servers, or can be installed on third-party servers.
A review of exacqVision Start from IPVideoMarket.Info can be found here. exacqVision Start will be released in early May.
exacqVision Pro 4.6
We featured the upcoming exacqVision Pro 4.6 release, available through the exacqVision Certified Reseller channel. New features we showed include Audit Trail, a new Enterprise Camera Management feature, a re-designed Notifications setup page, and support for the new panoramic cameras from Scallop Imaging, in addition to a number of new supported IP cameras. exacqVision Pro 4.6 will be released in early May. We also showed an exacqVision Pro 4.7 feature: dewarping support for lenses and cameras from Immervision and Sentry360. Version 4.7 is targeted for late May.
exacqVision Hybrid and IP Servers
The full line of exacqVision Hybrid and IP Servers was featured.
exacqVision EL-Mini – The EL-Mini is our newest, lowest-cost IP appliance server. With the ability to connect up to 24 IP cameras, the EL-Mini is ideal for low-cost installations. The embedded Linux operating system and exacqVision software are on a solid-state drive, for high reliability. The Intel Atom processor runs cool with very low power consumption. Up to 2 TB of hard drive video storage are available. The EL-Mini is perfect for either exacqVision Pro software or exacqVision Start software. The EL-Mini is shipping now.
exacqVision ELS-R – New in the EL-Series of embedded appliance servers is the exacqVision ELS-R. An update to the current EL-S, the ELS-R adds two front removable drive bays, providing internal storage up to 4TB, and the ability for user configurable storage options. exacqVision ELS-R is shipping now.
exacqVision Z-Series – All Z-Series line of Hybrid and IP enterprise servers now come standard with 8 IP camera licenses, with the ability to connect 96 IP camera licenses total. All Z-Series servers also now come standard with Three Years of exacqVision Pro software updates. This is on top of the Three Year hardware warranty.
Three Years Warranty & Software Updates – The entire line of exacqVision servers now include Three Years of exacqVision Pro software updates standard, on top of the Three Years hardware warranty.
exacq Mobile
Our latest exacq Mobile apps for iPhone, iPad, Android phones and Android tablets were featured. The new exacq Mobile apps have added the ability to control triggers, and sport a more intuitive user interface. All exacq Mobile apps are available on the iTunes App Store and the Android Market at no charge, and work with any exacqVision deployment.
Around the show floor
exacqVision was featured in a number of booths around the show floor. IDenticard introduced new integration of exacqVision with their PremiSys access control system (picture). S2 Security was featuring exacqVision integration with their NetBox and Pronto access control systems (picture). PlaSec was featuring exacqVision integration with their Classic Appliance and Enterprise Appliance access control systems (picture). Paxton Access was featuring exacqVision integration with their Net2 access control system (picture).
On the IP camera front, Exacq was one of the sponsors of the ONVIF Interoperability Showcase. Pictures from that event are here and here. exacqVision was featured in a number of IP camera vendors’ booths, including StarDot and Vivotek.
Pictures from the show
Here are some of the pictures from the show floor. You can view the complete album of pictures on our flickr page.
Click each picture for a larger view
Posted in exacq
Tagged exacq Mobile, IDenticard, Immervision, Paxton, PlaSec, S2, Scallop, Sentry360, StarDot, Start, tradeshow, Vivotek
Leave a comment
exacqVision 4.1 Released
Version 4.1 of exacqVision Video Management Software has just been released. This latest release, compatible with all exacqVision Hybrid and IP video surveillance systems, incorporates new features and enhancements, and continues our quest for rapid, incremental updates.
Version 4.1 is available for download here. Key features in the 4.1 Release:
- Serial Data over IP
- Viasys Video Analytics Support
- Serial Data export to ePlayer
- Expanded PTZ functionality
- Expanded Maps functionality
- Support for new IP camera models from Arecont, Ganz, IQeye, and StarDot
Here are some of the features in detail:
Serial Data over IP
Serial data can now be read over IP ports in addition to standard serial ports. A new window has been added to the Serial Port Setup page to configure the IP serial ports:

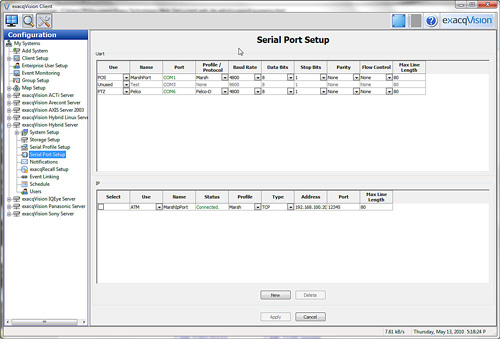

A close-up view of the IP Serial Setup window is here:
Up to 64 IP serial ports can be added per server, in addition to the standard RS-232 and RS-485 serial ports. IP serial port profiles are set up the same way as standard serial port profiles. Enabling serial over IP expands the ability of exacqVision servers to integrate with POS and ATM systems, access control systems, alarm systems, and video analytic systems, such as Viasys.
Viasys Video Analytics Support
Viasys is a vendor of video analytics software that resides on the edge and runs on Axis IP cameras, on IQeye Pro-line IP cameras. As analytic events occur, ASCII data is sent over the IP port. Through the use of serial over IP, an exacqVision server can read the serial data from this network port, and trigger recording and other actions based on the associated analytic events.
Viasys routines include intruder detection, perimeter protection, and alarming, and include ability for Adaptive Outdoor Analytics, 3D Video-Awareness, Electronic Fence/Trip Wire, Directional Detection and Sabotage Detection.
In addition to edge analytics, Viasys software also runs on any exacqVision server, enabling full video analytics capability for all IP cameras supported in exacqVision, including Arecont Vision, ACTi, Panasonic, Vivotek, StarDot, and more.
You can download a fully-functioning 30-day trial of Viasys software here. Demo videos of Viasys in action are here.
Serial Data Export to ePlayer
Serial data, whether from serial ports or IP ports, can now be fully exported along with associated video cameras. This export enables the serial data to scroll in real-time with what is happening on the cameras. As the video scrub bar is used to rapidly forward or reverse through video, the serial data scrolls rapidly as well; likewise as you rapidly scroll through serial data, the video stays in sync.

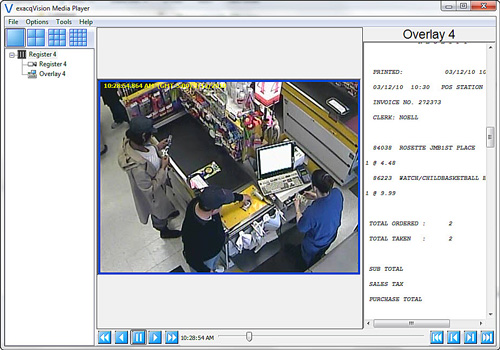

Here’s a sample screenshot of exported video and serial data in the ePlayer:
An exported clip of video and serial data in the ePlayer is available for download here
34.5 MB, requires reseller password
Expanded PTZ Functionality
With Version 4.1, additional commands have been added for mechanical PTZ cameras using the AD-422 and Pelco-D protocol, as well as for all analog and IP mechanical PTZ cameras.
Access PTZ Dome Menu – For Pelco and AD, you can now access the camera’s internal menu from within the exacqVision client (click images for a larger view):
More Joystick Commands – In addition, additional PTZ commands are now available from PTZ consoles and joysticks, including Menu On/Off, Run Patterns, and Flip.

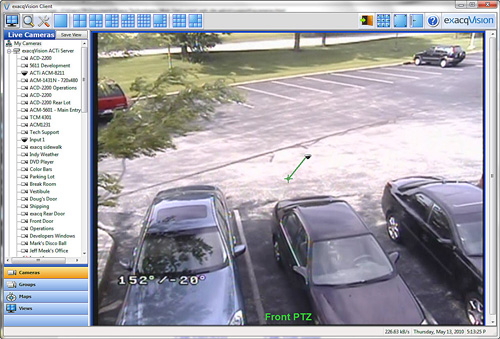

Proportional PTZ via Mouse – New enhancements have been added for propotional PTZ control of mechanical cameras via a mouse. Graphical feedback appears showing the direction of the mouse. As the mouse moves farther from the center crosshair, the pan-tilt speed increases. This feature has always been available with PTZ joysticks, and is now available with the mouse:

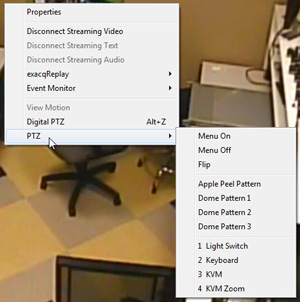

Record Dome Patterns – Dome Patterns can now be recorded from within the exacqVision client. A new Dome Pattern section appears on a right-click of a PTZ camera setup:
Dome patterns, both those that have been recorded within exacqVision or recorded externally, can be accessed from the right-click PTZ menu:
Video Demo – Here’s a brief video demo of the new enhanced PTZ features in exacqVision 4.1:
Import/Export Maps

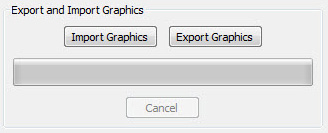

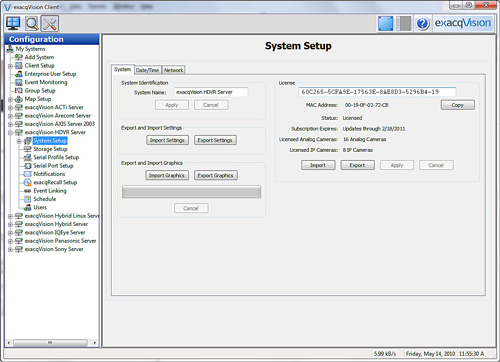

Enhanced ability to import and export graphics used for Maps. Export/Import buttons along with a status bar are now included in the System Setup page:
IP Camera Support Updates
Support for a number of new IP camera models has been added, including:
Arecont Vision – Support added for the new Arecont AV3135 D/N camera, as well as the new dual-mode AV10005 10-Mpixel/1080P IP camera
Ganz – Support added for the new CBC Ganz IP Dome Cameras ZN-D9312NHA and ZN-DN9312NHA
IQeye – Support added for the new IQeye HD1080P Series H.264 IP cameras. Usability improvements have also been added for the entire IQeye line, enabling port configuration and auto login.
StarDot – Support added for the new line of H.264 NetCam multi-megapixel cameras, models SDH500BN, SDH500B, SDH300B, SDH130BN, SDH130B.
Recent Releases
With this release we continue to make rapid progress with exacqVision, and incremental releases have hit about every 2 months. A large number of new features have been added in a short period of time. You can see the full release history of exacqVision here:
exacqVision Release History
Download and Installation
As always, the latest versions of exacqVision client and server software can easily and quickly be copied over existing versions while retaining all user settings. The latest versions can always be downloaded from the exacqVision Downloads page, or you can click on ‘Check for Updates‘ within the ‘About‘ box in the exacqVision software.
exacqVision Server software is available in both Windows and Linux versions, and the exacqVision client software is available in Windows, Linux and Macintosh native versions. Any version of exacqVision client can connect to any version of exacqVision server.
Exacq at SecuTech Expo 2010 in Taiwan
SecuTech Expo 2010, one of Asia’s largest physical security tradeshows, began today in Taipei. exacqVision is well represented at this year’s show, reflecting the rapid growth we are seeing throughout Asia.
Alpha Pricing Co., the Exacq distributor for Taiwan, has a large booth showcasing a number of the vendors they distribute. The exacqVision product line is prominently featured, highlighted by connecting megapixel IP cameras from Arecont Vision and others.
MegaPixel IP camera vendor StarDot is featuring exacqVision VMS software in their booth to demo their new line of H.264 multi-megapixel IP cameras.
Stretch, Inc, is highlighting the new exacqVision EL-S embedded Linux Hybrid NVR appliance, which utilizes the Stretch S6000 processor for H.264 video compression. The exacqVision VMS software is also running on the Stretch VRC6404HD board, designed specifically to connect to HDcctv cameras. Stretch is one of the founding members of the HDcctv Alliance.
SecuTech continues for two more days. You can see exacqVision at Alpha Pricing booth #L627-L632, at StarDot booth #K724-K725, and at Stretch, Inc. booth #L410-L412. You can click on the images below for larger versions.
Heavy Metal Protection – An Installer Case Study
Security Sales & Integration magazine’s April 2010 cover story, entitled Heavy Metal Protection, details the unique IP video installation by Oklahoma City-based STAMPSCO for the American Precious Metals Exchange (APMEX) building. This interesting case study is definitely worth a read. It begins:
When is a quarter of a million dollars a bargain? When it pays for a comprehensive security solution that safeguards a fortune in gold, silver, platinum and palladium coins and bars. As one of the nation’s largest online retailers of precious metals, the American Precious Metals Exchange Inc. (APMEX) is understandably dead serious about security. Its recent move to the site of the former Federal Reserve Bank of Oklahoma City prompted an upgrade of the existing access control, burglary and CCTV systems.
APMEX security director Adrian Neal:
“We were looking for a state-of-the-art security system, access control system and CCTV system that would protect our employees and our inventory,” says Neal. “We also wanted a CCTV system that could be accessed via a secure Internet connection from anywhere. We believed a combination of these three components would provide complete protection for APMEX’s inventory.”
The building presented many installation challenges, including drilling through a three-foot-thick steel vault door, running all wiring in conduit, and a highly accelerated timeline amid inclement weather. STAMPSCO selected the equipment that would best suit the customer’s needs:

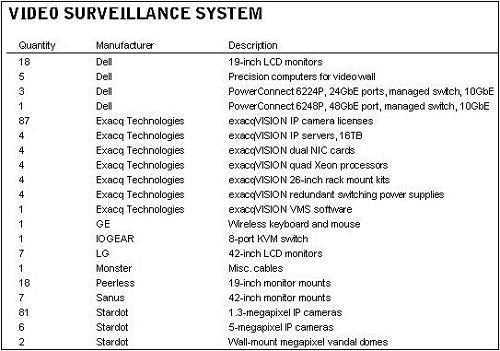

To provide a system that would meet the client’s needs and desires, was best suited for the application, and could be counted on for reliability and support, the integrator selected several well-known brands but also some impressive newer ones. The main vendors were: Honeywell, Exacq Technologies, Stardot, Hirsch Electronics and Dell.
“Hirsch and Exacq were instrumental in the project and made site visits to assist us with any issues. We used IP megapixel cameras specifically for better quality video with broader viewing capability. This reduced the number of analog cameras it would have taken to obtain the coverage needed, and gave us more flexibility with recording,” says Rodney Stamps. “We utilized Honeywell’s Vplex addressable technology to reduce the amount of wiring on the security system portion of the project.”

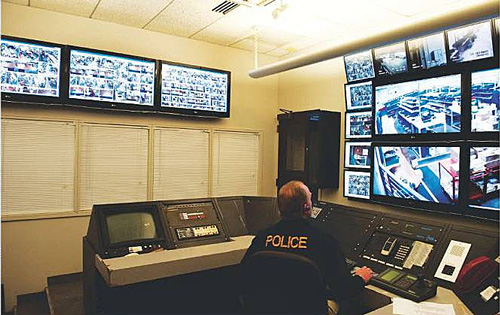

Three NVRs were installed in the basement’s video room and another upstairs in the control room. Control and storage is handled by exacqVision’s VMS and 16TB IP servers.
APMEX’ Adrian Neal was pleased with the outcome:
“We are very impressed. This state-of-the-art equipment provides peace of mind. We also enjoy the ability to have remote viewing of the facilities,” says Neal. “We are very happy with STAMPSCO’s work and all the equipment they installed. The security in this building now exceeds our wants and needs.”
Our congratulations to Rodney Stamps and the entire crew at STAMPSCO for this well-done installation! The full article can be read here.
Report from ISC East 2009
ISC East wrapped up yesterday. By all accounts, it was a great show. Good selection of vendors, great educational sessions, and a lot of attendees. The attendance levels were commented on extensively in the trade media.
We were there showing the upcoming Version 3.7 of exacqVision software in the Winsted booth, and there were crowds in the booth both days, all day long. exacqVision was also being featured in other parts of the show, including the StarDot booth.
Geoff Kohl of SecurityInfoWatch.com came by and talked with us, and he featured Exacq in his extensive Podcast coverage of the ISC East show. We appreciate the complimentary things he had to say about us.
You can find the specific Episode #44 of the SIW Radio Podcast here:
http://www.securityinfowatch.com/root+level/episode-44-isc-east-2009-coverage
You can also listen to the ISC East episode directly here:
SIW Radio – Episode 44 – ISC East 2009 Coverage
[audio:http://www.securityinfowatch.com/audio/download/1313581/SIWRadio-Episode44.mp3]
Geoff’s comments about Exacq start at exactly 7:00 minutes in.
Our thanks to Winsted, StarDot, and the organizers of ISC for a great show.
exacqVision StarDot demo server now online
We have several exacqVision demo servers in place to help showcase the capabilities of the exacqVision software. These servers are widely used by us, by our resellers, and by many end-users to evaluate the software. Among the demo systems are are two Hybrid servers, one Linux and one Windows, each with a variety of analog, PTZ and IP cameras of all types and brands connected, as well as a number of IP camera brand-specific servers.
Recently we added a dedicated StarDot demo server, connected to a number of StarDot Technologies’ NetCam SC megapixel IP cameras. This server is located at StarDot’s headquarters in California. Four NetCam SC 1.3 megapixel cameras are currently connected, three outdoors and one indoors. Here’s a 2×2 view of the cameras on this server (click on picture for larger versions):
One of the more interesting camera views on this server is the one aimed at a clock with a finely detailed face. It is a great showcase for both megapixel IP camera image clarity, as well as the powerful Digital PTZ function of exacqVision. Below are screenshots of the clock in a 1×1 full view, and then doing a live digital PTZ (click on pictures for larger versions):
The StarDot server is up and ready to use. If you already have a login on our other demo servers, your same username and password will apply for the Stardot server. To add this server, just go to Add System in the Configuration tree, and enter the following:
- hostname: stardot.exacq.com
- your username
- your password
If you’d like to get a login to our demo servers, if need us to resend your login details, or if you have any other questions, please don’t hesitate to contact us.
StarDot Megapixel IP Camera Support in exacqVision
We’re pleased to announce support within exacqVision VMS software (version 3.3) for StarDot Technologies’ NetCam SC line of megapixel IP cameras. StarDot’s Netcam SC camera line offers hybrid outputs (analog and IP), resolutions from 1.3 mPixel to 5.0 mPixel, auto-mechanical day-night IR filter, POE, and more.
StarDot issued a press release today announcing the support. Here is an excerpt:
StarDot’s joint venture with Exacq offers customers a robust solution covering a wide variety of security applications that require high speed recording, scalability and the ultimate in video clarity. “The StarDot Video Image Engine processor in the NetCam SC Cameras is an excellent complement to the exacqVision platform,” said Vance Kozik, StarDot’s product manager, “The combination provides an ideal solution for license plate capture, face detail capture or replacing multiple CCTV cameras with a single wide angle megapixel camera.”
StarDot’s website is here. Our complete listing of supported IP cameras is here.
